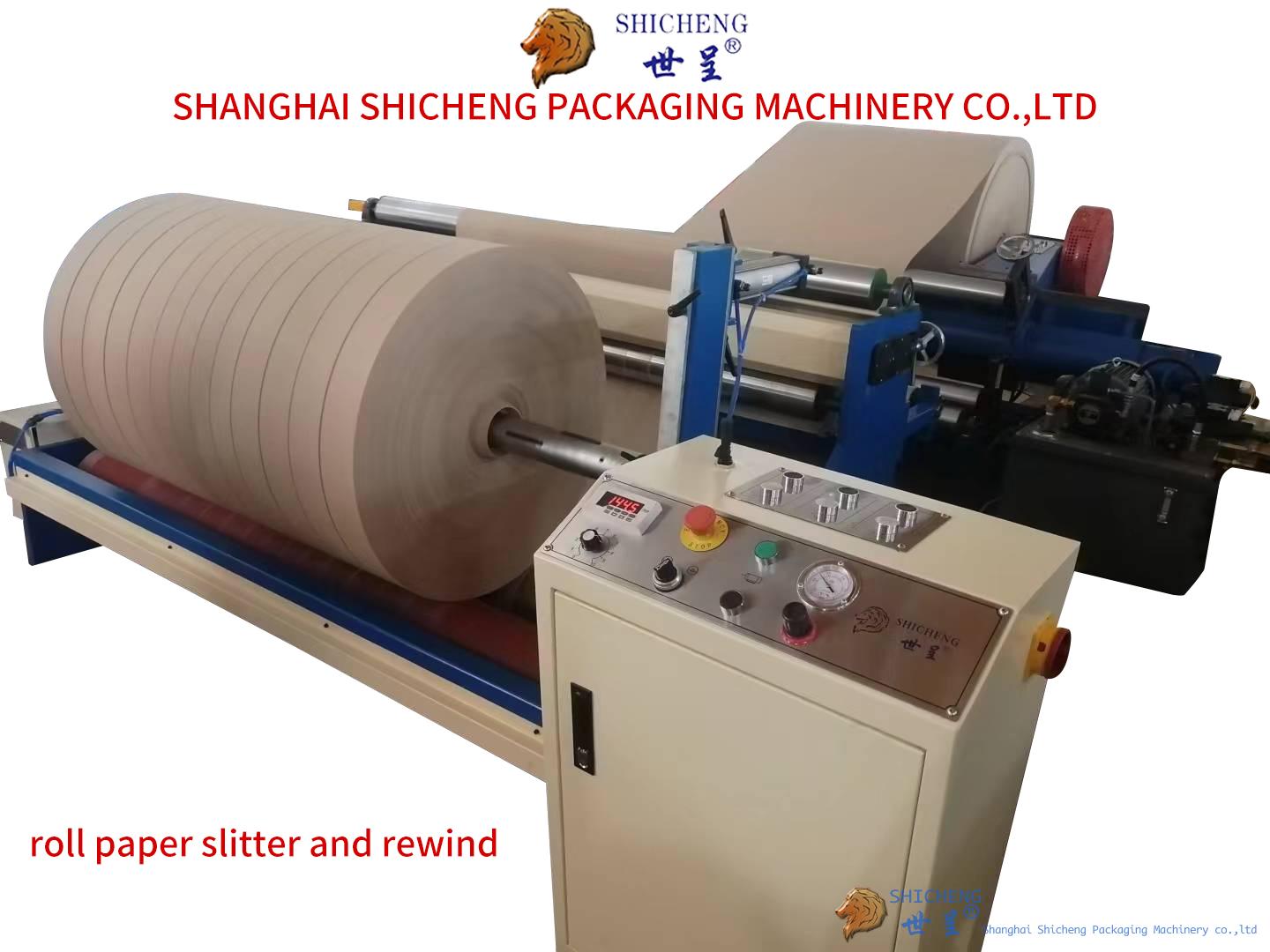

FQ1600C paper slitter and rewinder

FQ1600C paper slitter and rewinder

Product description: FQ1600C paper slitter and rewinder
INQUIRY

1.It is convenient to load paper by hydraulic shaftless paper stand.
2.Electric control hydraulic correction with high precision.
3.With pneumatic tension control system.
4.Frequency converter drive the synchronous belt. Strong power with low noise.
5.It uses bending roll to stretch the paper with 1mm to 2mm gap.
6.With single ground roller. With low center of gravity

7.Reduce working intensity with air cylinder to unload paper.

Max.width of paper roll	1600-2500mm
Min.slit width	40mm
Rewind diameter	1100mm
Max.speed	140m/min
Strip	15（strips）
Total power	11KW
Dimension	4230×3270×1030mm
Total weight	3500KG
